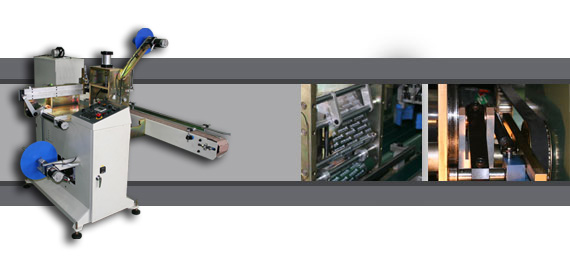

Auto Dust Cap Holding Machine


Model No.
HDC10
Type
Coil Vinyl Blanking & Hot Air Shinking system
Used For
Dust Cap Holding in oil filter assembly
Capacity
40  pcs / min.

    Preventing dust or other materials entering into oil filters.

    Auto cutting of plastic sheet and auto feeding onto the sheet by robot arm.

    Heat shrinkage forming into cap - the most economic capping system.



Specification



    Available diameter of filter : Ø55 - Ø100 mm

    Available height of filter : 60 - 160 mm

    Air pressure : 7 kgs/§²

    Available shrink film thickness : 0.025 mm
